SNW #41: Aerodynamics of Rockets



The Impact of Aerodynamic Design on Rocket Performance

Rockets, magnificent machines defying gravity, owe much of their success to their meticulously crafted aerodynamic shapes. Far from being arbitrary, the external form of a rocket is a critical determinant of its flight characteristics, efficiency, and ultimate mission success. Different rockets employ varied designs, each optimized for specific goals, leading to fascinating differences in their operational profiles.

At its core, aerodynamic design for rockets revolves around minimizing drag and optimizing stability. Drag, the resistive force of air, works against the rocket's upward thrust, consuming valuable fuel and limiting achievable altitudes and speeds. Stability, on the other hand, ensures the rocket maintains its intended trajectory, preventing uncontrolled tumbling or veering off course.

Let's look at some prominent examples. The Saturn V, the colossal rocket that took humans to the Moon, embodied a relatively blunt and cylindrical design. Its sheer power meant that minimizing drag wasn't the absolute highest priority in its initial ascent through the dense lower atmosphere. Its large fin-like stabilizers at the base provided ample stability during the initial, slower stages of flight. The multiple stages, each shedding as fuel was expended, progressively reduced the overall mass, effectively "rescuing" it from the drag penalties of its initial larger cross-section. Its operational focus was brute force to escape Earth's gravity with massive payloads.




In contrast, the SpaceX Falcon 9 showcases a more streamlined and elongated cylindrical design. While still largely cylindrical, it incorporates a more refined nose cone (ogive shape) to reduce drag, especially crucial for its reusability efforts. The Falcon 9's defining aerodynamic feature, however, lies in its grid fins. These deployable, lattice-like structures located near the top of the booster are a revolutionary addition. During the atmospheric re-entry for landing, these grid fins deploy to provide precise aerodynamic control, enabling the booster to steer and orient itself for a pinpoint vertical landing. This allows for controlled descent and propulsive landing, directly impacting its operational efficiency and cost-effectiveness through reususability.

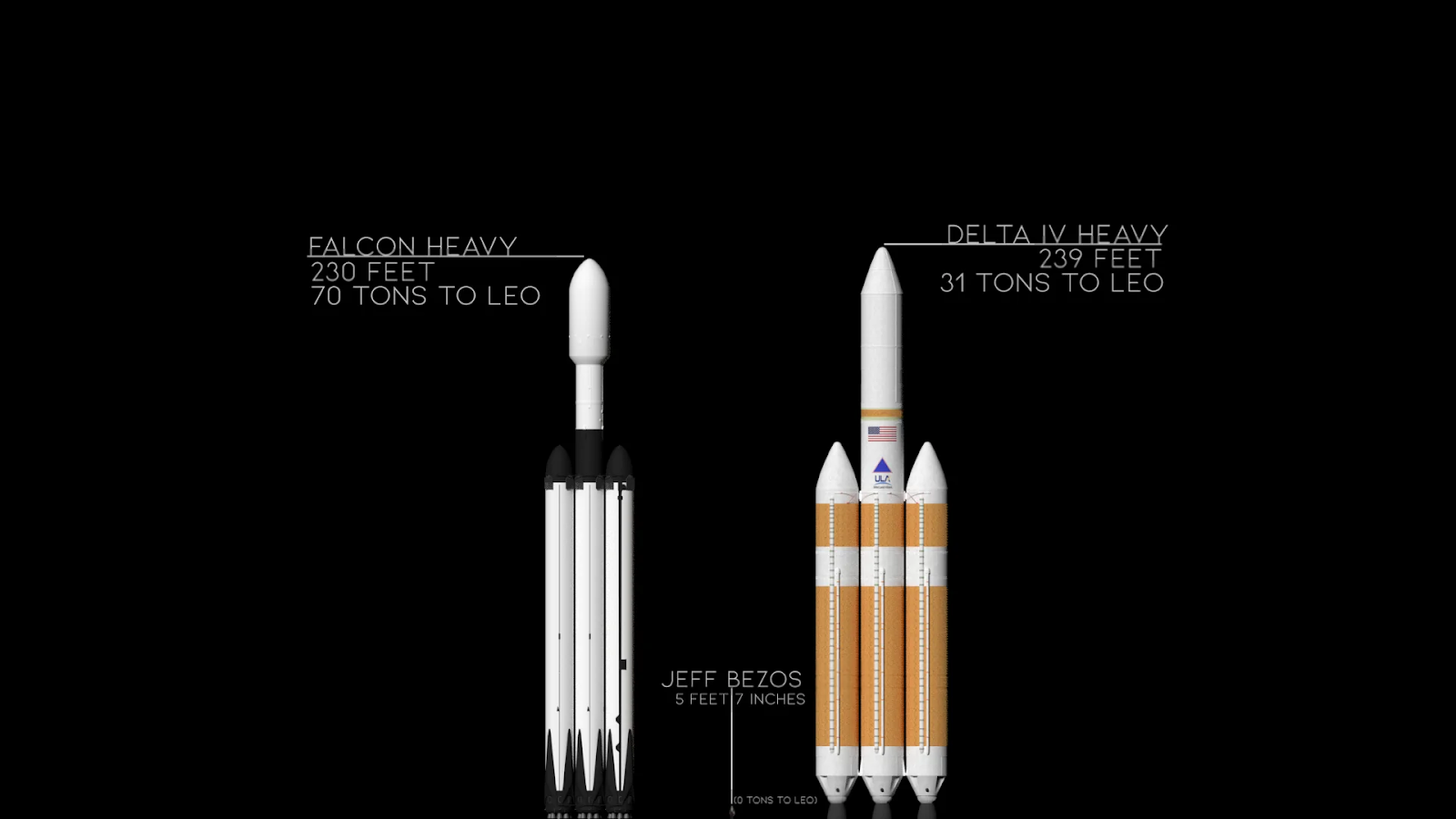

The Delta IV, another workhorse of orbital launches, features a slightly different approach. Its common booster core is also largely cylindrical, but the upper stages often feature a more distinct tapering or conical section. The Delta IV family prioritizes reliability and payload flexibility, and its aerodynamic design reflects a balance of minimizing drag for various payload fairing configurations while maintaining robust stability during ascent. Its operational focus leans towards reliable, heavy-lift capabilities for a variety of government and commercial satellites.



Finally, the SpaceX Starship, a truly ambitious undertaking, represents a radical departure in rocket design, particularly in its re-entry and landing profile. While its booster (Super Heavy) is a massive cylinder, the Starship spacecraft itself is a large, stainless steel cylinder with distinct, large control surfaces at its base and a unique "belly-flop" maneuver for atmospheric re-entry. These "flaps" or "fins" are crucial for generating aerodynamic drag and lift during the precise re-entry trajectory. The Starship's operational design prioritizes high-volume, cost-effective space travel, aiming for full reusability for both stages. Its aerodynamic design, especially the re-entry profile, is specifically tailored to dissipate immense kinetic energy through atmospheric braking, allowing for a controlled, propulsive landing. This "belly-flop" maneuver, unlike traditional rockets, leverages the large surface area of the vehicle to create significant drag, slowing it down effectively for a soft landing.

In essence, the aerodynamic shape of a rocket is not just aesthetic; it's a fundamental engineering decision dictated by the rocket's purpose. From the blunt power of the Saturn V to the reusable grace of the Falcon 9 and the revolutionary re-entry of Starship, each design is a testament to the intricate relationship between form and function in the demanding environment of spaceflight.
